Speaker type: 6 ½” time-coherent point-source coaxial.
Principle: Vented/ Passive.
Woofer: 6 ½” woofer cone made from graphene-carbon non-woven mix.
Tweeter: 1” soft dome tweeter with presence EQ switch 0 dB / +3 dB.
Power Handling: 200W at 8Ohms.

Speaker type: 18” forward-firing, advanced carbon Rohacell® composite sandwich cones, neodymium motor with 4” ultra-high-temperature voice-coil
XMAX: 23 mm excursion each direction (46 mm linear), voice coil remaining in homogeneous magnetic field, linear and lowest distortion.
Principle: Sealed/ Passive.
Recommended amp: 1Ch DSP and 1Ch amplifier are required. Min. recommended amplifier: 89 Vrms, 126 Vpk, 22.5 A; equivalent to 2000 W @ 4 Ω, with correct RMS & peak limiter settings.

Amplificateur Ascendo DSP 4-10K2 MKII
4x 2500w ou 2x 5000w
Connecteurs Neutrik

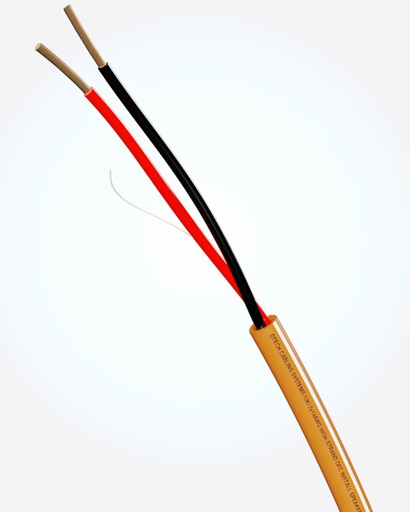

2 core 14 Guage OFC speaker cable, the industry standard for residential and commercial AV environments for extended runs due to its larger core size. High purity 105 strand copper conductors with a low resistance to support professional install environments. DTECH speaker cables are made with Low Smoke Zero Halogen materials, making this range perfectly suited for both residential and public spaces. DTECH speaker cables are back by our 30-year performance and material guarantee

Speaker type: 5” time-coherent point-source coaxial.
Principle: Vented/ Passive.
Woofer: 5¼” woofer.
Tweeter: 1” soft dome.
Power Handling: 100W at 8Ohms.

Speaker type: 12” forward-firing, advanced carbon Nomex® pulp mix cones, neodymium motor with 4” ultra-high-temperature voice-coil and triple shorting rings.
XMAX: 20 mm excursion each direction (40 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion.
Principle: Sealed Passive.
Recommended Amp: 1Ch DSP and 1Ch amplifier are required. Min. recommended amplifier: 60 Vrms, 84 Vpk, 15.0 A; equivalent to 900 W @ 4 Ω with correct RMS & peak limiter settings

Speaker tpye: 12” forward-firing compositive cone woofer, 3” voice coil.
XMAX: 20 mm excursion each direction (40 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion.
Principle: Vented/ Active Built in DSP amp.
Out Power: 600W

Speaker type: 15” forward-firing, with 3” voice-coil. XMAX: 6 mm excursion each direction (12 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion.
Principle: Vented/ Passive.
Recommanded amp: 1Ch DSP and 1Ch amplifier are required. Min. recommended amplifier: 52.9 Vrms, 74.8 Vpk, 13.2 A; equivalent to 700 W @ 4 Ω, with correct RMS & peak limiter settings. Out Power: 1000W

Speaker type: 16” forward-firing compositive cone woofer, 3” voice coil. XMAX: 20 mm excursion each direction (40 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion. Principle: Sealed/ Active Built in DSP amp. Out Power: 1000W

Speaker type: 80” forward-firing, dual gap motor structure with 2 inner and 2 outer voice coils, neodymium motor. . XMAX: . Principle: Sealed/ Passive. Recommended amp:

Speaker type: 50” forward-firing, dual gap motor structure with 2 inner and 2 outer voice coils, neodymium motor. . XMAX: . Principle: Sealed/ Passive. Recommended amp:

Speaker type: 32” forward-firing, dual gap motor structure with 2 inner and 2 outer voice coils, neodymium motor. . XMAX: . Principle: Sealed/ Passive. Recommended amp:

Speaker type: 24” forward-firing, dual gap motor structure with 2 inner and 2 outer voice coils, neodymium motor. . XMAX: . Principle: Sealed/ Passive. Recommended amp:

Speaker type: 21” forward-firing, dual gap motor structure with 2 inner and 2 outer voice coils, neodymium motor. XMAX: 17.5 mm excursion each direction (35 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion. Principle: Sealed/ Passive. Recommended amp: 1Ch DSP and 1CH amplifier are required. Min. recommended amplifier: 109 Vrms, 154 Vpk, 27.3 A; equivalent to 3000 W @ 4 Ω with correct RMS & peak limiter settings.

Speaker type: 32” forward-firing, dual gap motor structure with 2 inner and 2 outer voice coils, neodymium motor. . XMAX: . Principle: Sealed/ Active. Out Power:

Speaker type: 24” forward-firing, dual gap motor structure with 2 inner and 2 outer voice coils, neodymium motor. . XMAX: . Principle: Sealed/ Active Built in DSP amp. Out Power:

Speaker type: 21” forward-firing, dual gap motor structure with 2 inner and 2 outer voice coiles, neodymium motor. XMAX: 17.5 mm excursion each direction (35 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion. Principle: Sealed/ Active Buitl in DSP amp. Out Power: 3000W

Speaker type: 21” forward-firing, dual gap motor structure with 2 inner and 2 outer voice coiles, neodymium moto. XMAX: 17.5 mm excursion each direction (35 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion. Principle: Vented/ active Built in DSP amp. Out Power: 3000W

Speaker type: 18” forward-firing, dual gap motor structure - 2 inner and 2 outer voice coils, neodymium motor. XMAX: 17.5 mm excursion each direction (35 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion.
Principle: Sealed/ Active Built in DSP amp.
Out Power: 3000W

Speaker type: 18” forward-firing, dual gap motor structure - 2 inner and 2 outer voice coils, neodymium motor. XMAX: 17.5 mm excursion each direction (35 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion.
Principle: Vented/ Active Built in DSP Amp.
Out Power: 3000W
