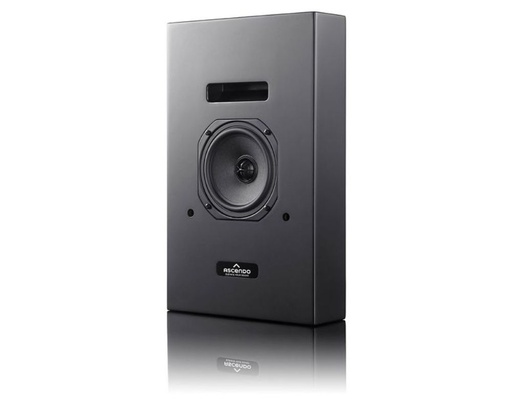

Speaker type: 5” time-coherent point-source coaxial.
Principle: Vented/ Passive.
Woofer: 5¼” woofer.
Tweeter: 1” soft dome.
Power Handling: 100W at 8Ohms.

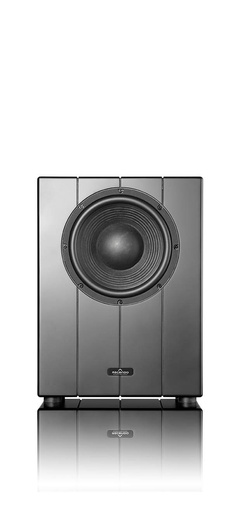

Speaker type: 12” forward-firing, advanced carbon Nomex® pulp mix cones, neodymium motor with 4” ultra-high-temperature voice-coil and triple shorting rings.
XMAX: 20 mm excursion each direction (40 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion.
Principle: Sealed Passive.
Recommended Amp: 1Ch DSP and 1Ch amplifier are required. Min. recommended amplifier: 60 Vrms, 84 Vpk, 15.0 A; equivalent to 900 W @ 4 Ω with correct RMS & peak limiter settings

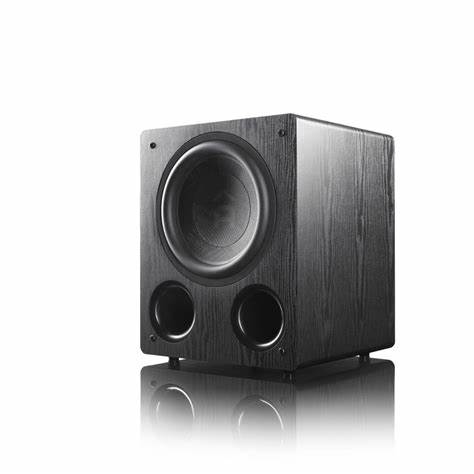

Speaker tpye: 12” forward-firing compositive cone woofer, 3” voice coil.
XMAX: 20 mm excursion each direction (40 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion.
Principle: Vented/ Active Built in DSP amp.
Out Power: 600W

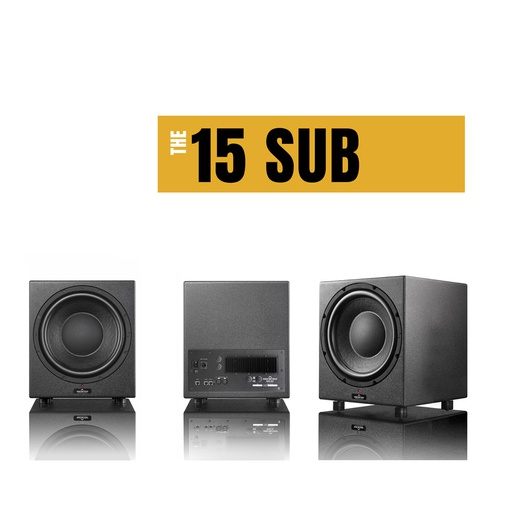

Speaker type: 15” forward-firing, with 3” voice-coil. XMAX: 6 mm excursion each direction (12 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion.
Principle: Vented/ Passive.
Recommanded amp: 1Ch DSP and 1Ch amplifier are required. Min. recommended amplifier: 52.9 Vrms, 74.8 Vpk, 13.2 A; equivalent to 700 W @ 4 Ω, with correct RMS & peak limiter settings. Out Power: 1000W

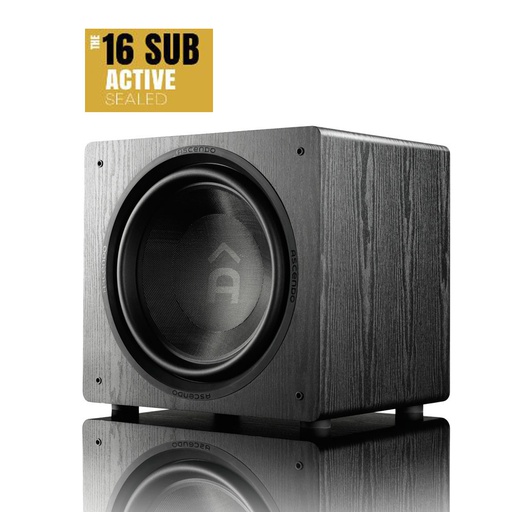

Speaker type: 16” forward-firing compositive cone woofer, 3” voice coil. XMAX: 20 mm excursion each direction (40 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion. Principle: Sealed/ Active Built in DSP amp. Out Power: 1000W

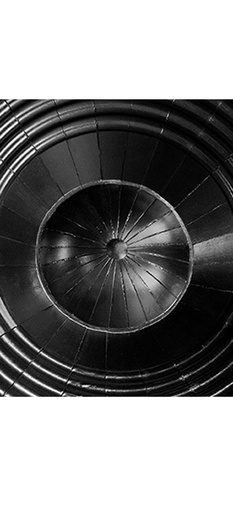

Speaker type: 80” forward-firing, dual gap motor structure with 2 inner and 2 outer voice coils, neodymium motor. . XMAX: . Principle: Sealed/ Passive. Recommended amp:

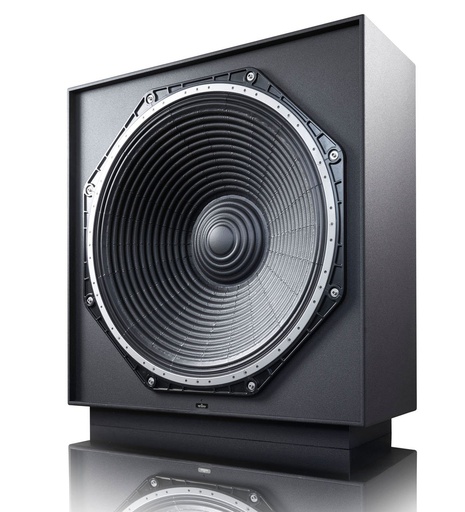

Speaker type: 50” forward-firing, dual gap motor structure with 2 inner and 2 outer voice coils, neodymium motor. . XMAX: . Principle: Sealed/ Passive. Recommended amp:

Speaker type: 32” forward-firing, dual gap motor structure with 2 inner and 2 outer voice coils, neodymium motor. . XMAX: . Principle: Sealed/ Passive. Recommended amp:

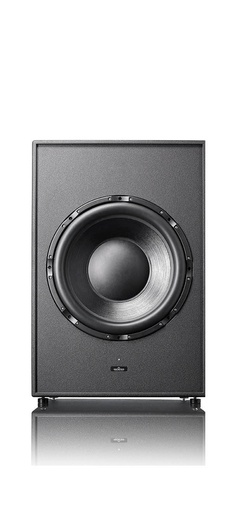

Speaker type: 24” forward-firing, dual gap motor structure with 2 inner and 2 outer voice coils, neodymium motor. . XMAX: . Principle: Sealed/ Passive. Recommended amp:

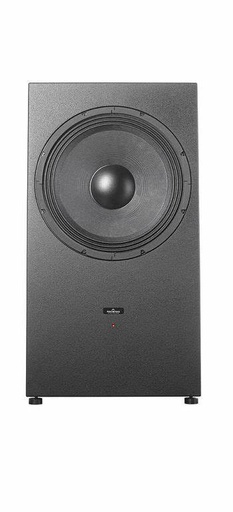

Speaker type: 21” forward-firing, dual gap motor structure with 2 inner and 2 outer voice coils, neodymium motor. XMAX: 17.5 mm excursion each direction (35 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion. Principle: Sealed/ Passive. Recommended amp: 1Ch DSP and 1CH amplifier are required. Min. recommended amplifier: 109 Vrms, 154 Vpk, 27.3 A; equivalent to 3000 W @ 4 Ω with correct RMS & peak limiter settings.

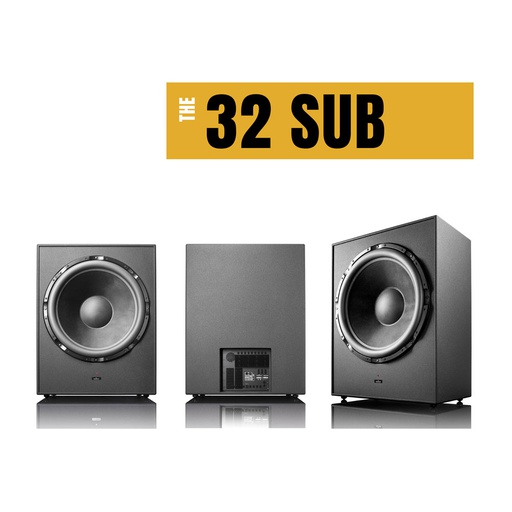

Speaker type: 32” forward-firing, dual gap motor structure with 2 inner and 2 outer voice coils, neodymium motor. . XMAX: . Principle: Sealed/ Active. Out Power:

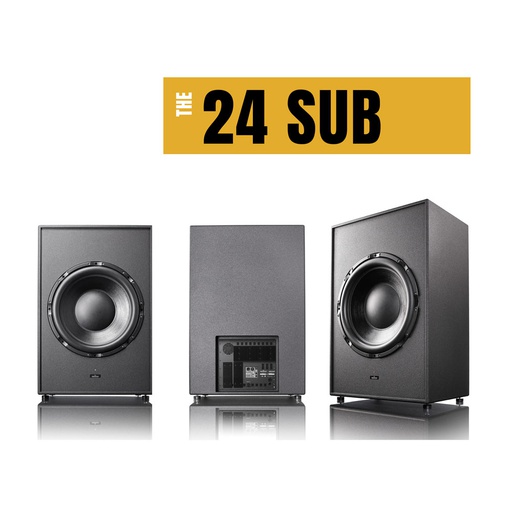

Speaker type: 24” forward-firing, dual gap motor structure with 2 inner and 2 outer voice coils, neodymium motor. . XMAX: . Principle: Sealed/ Active Built in DSP amp. Out Power:

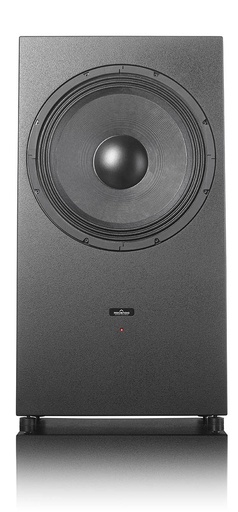

Speaker type: 21” forward-firing, dual gap motor structure with 2 inner and 2 outer voice coiles, neodymium motor. XMAX: 17.5 mm excursion each direction (35 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion. Principle: Sealed/ Active Buitl in DSP amp. Out Power: 3000W

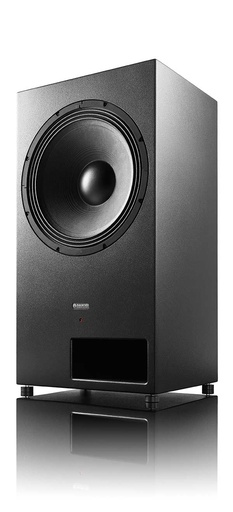

Speaker type: 21” forward-firing, dual gap motor structure with 2 inner and 2 outer voice coiles, neodymium moto. XMAX: 17.5 mm excursion each direction (35 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion. Principle: Vented/ active Built in DSP amp. Out Power: 3000W

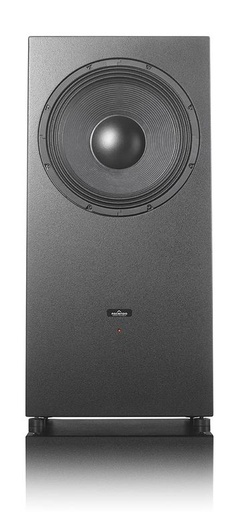

Speaker type: 18” forward-firing, dual gap motor structure - 2 inner and 2 outer voice coils, neodymium motor. XMAX: 17.5 mm excursion each direction (35 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion.
Principle: Sealed/ Active Built in DSP amp.
Out Power: 3000W

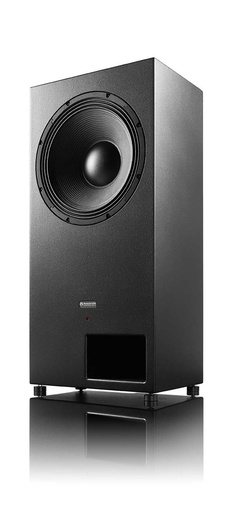

Speaker type: 18” forward-firing, dual gap motor structure - 2 inner and 2 outer voice coils, neodymium motor. XMAX: 17.5 mm excursion each direction (35 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion.
Principle: Vented/ Active Built in DSP Amp.
Out Power: 3000W

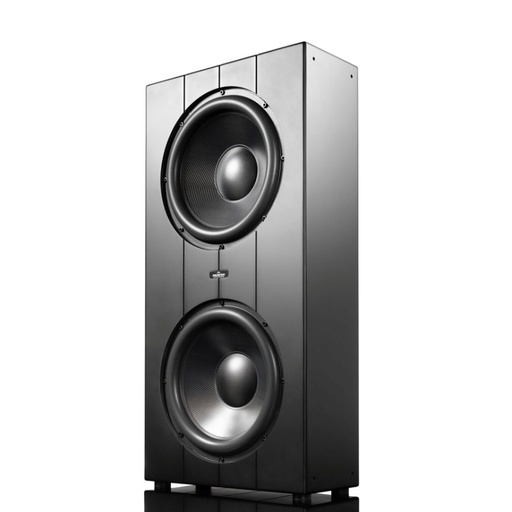

Speaker type: 2 x 18” forward-firing, advanced carbon Rohacell® composite sandwich cones, neodymium motor with 4” ultra-high-temperature voice-coil.
XMAX: 23 mm excursion each direction (46 mm linear), voice coil remaining in homogeneous magnetic field, linear and lowest distortion.
Principle: Sealed/ Passive.
Recommended amp: 1Ch DSP and 1 or 2Ch amplifier are required. Min. recommended amplifier: 89 Vrms, 126 Vpk, 45 A; equivalent to 4000 W @ 4 Ω, with correct RMS & peak limiter settings.

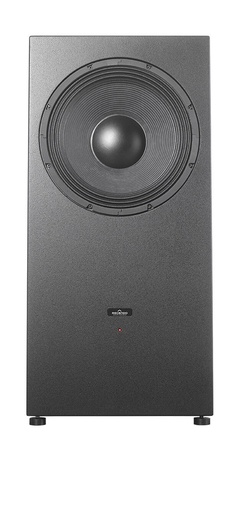

Speaker type: 18” forward-firing, dual gap motor structure - 2 inner and 2 outer voice coils, neodymium motor. XMAX: 17.5 mm excursion each direction (35 mm linear), voice coil remaining in homogeneous magnetic field, linear and lower distortion.
Principle: Sealed/ Passive.
Recommended amp: 1Ch DSP and 1Ch amplifier are required. Min. recommended amplifier: 72 Vrms, 102 Vpk, 18.0 A; equivalent to 1100 W @ 4 Ω, with correct RMS & peak limiter settings.

GAN 16/16-4504.
The GAN Series is ASCENDO’s comprehensive series of multichannel amplifiers for high-performance audio applications in markets where high channel count is required.
16 x 280W @ 4Ω
8 x 500W
16 DSP Channels

GAN 32/16-4504.
The GAN Series is ASCENDO’s comprehensive series of multichannel amplifiers for high-performance audio applications in markets where high channel count is required.
16 x 280W @ 4Ω
8 x 500W
32 DSP Channels
